HD SSD inacessível: scsi error badly formed scsi parameters
1. HD SSD inacessível: scsi error badly formed scsi parameters
mr.wanderson
(usa Outra)
Enviado em 18/05/2024 - 07:53h

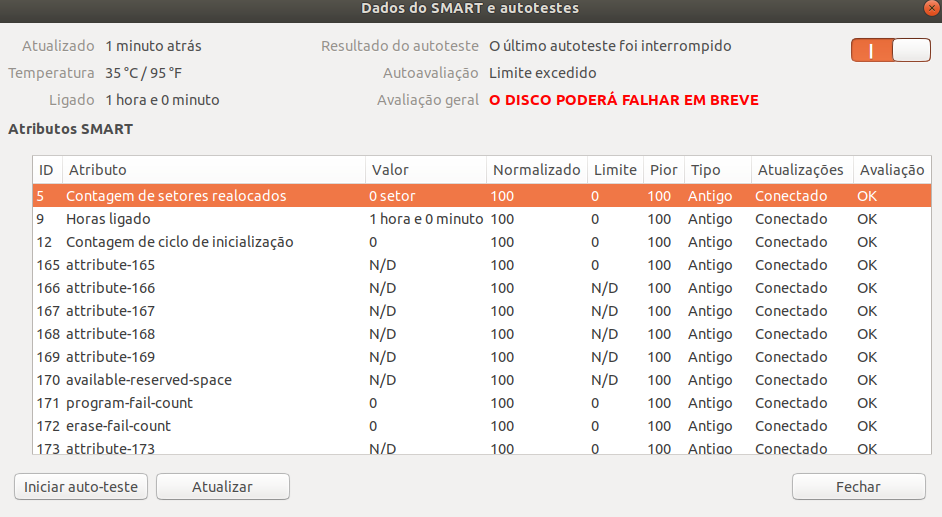

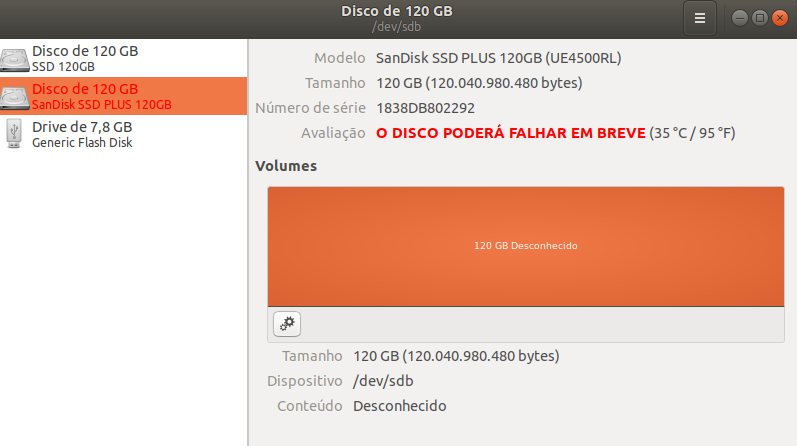

Bom dia. Até ontem (17/5/24) estava usando Ubuntu e Windows pelo meu HD SSD normalmente até que em um certo momento ao utilizar o Ubuntu simplesmente travou. Ao reiniciar o PC a mensagem: "BOOT FAILURE". Hoje tentei acessar os arquivos através de outro computador: não é possível montar o hd, as partições não aparecem e a seguinte mensagem através do comando smartctl:smartctl 6.6 2016-05-31 r4324 [x86_64-linux-4.18.0-15-generic] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Device Model: SanDisk SSD PLUS 120GB
Serial Number: 1838DB802292
LU WWN Device Id: 5 001b44 8b98d4504
Firmware Version: UE4500RL
User Capacity: 120.040.980.480 bytes [120 GB]
Sector Size: 512 bytes logical/physical
Rotation Rate: Solid State Device
Form Factor: 2.5 inches
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ACS-2 T13/2015-D revision 3
SATA Version is: SATA 3.2, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is: Sat May 18 07:04:27 2024 -03
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: FAILED!
Drive failure expected in less than 24 hours. SAVE ALL DATA.
No failed Attributes found.
General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 32) The self-test routine was interrupted
by the host with a hard or soft reset.
Total time to complete Offline
data collection: ( 120) seconds.
Offline data collection
capabilities: (0x15) SMART execute Offline immediate.
No Auto Offline data collection support.
Abort Offline collection upon new
command.
No Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
No Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 21) minutes.
SMART Attributes Data Structure revision number: 1
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
5 Reallocated_Sector_Ct 0x0032 100 100 000 Old_age Always - 0
9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 0
165 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 2112
166 Unknown_Attribute 0x0032 100 100 --- Old_age Always - 28
167 Unknown_Attribute 0x0032 100 100 --- Old_age Always - 0
168 Unknown_Attribute 0x0032 100 100 --- Old_age Always - 73
169 Unknown_Attribute 0x0032 100 100 --- Old_age Always - 95
170 Unknown_Attribute 0x0032 100 100 --- Old_age Always - 0
171 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
172 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
173 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 28
174 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
184 End-to-End_Error 0x0032 100 100 --- Old_age Always - 0
187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
188 Command_Timeout 0x0032 100 100 --- Old_age Always - 0
194 Temperature_Celsius 0x0022 065 035 000 Old_age Always - 35 (Min/Max 20/35)
199 UDMA_CRC_Error_Count 0x0032 100 100 --- Old_age Always - 0
230 Unknown_SSD_Attribute 0x0032 100 100 000 Old_age Always - 6610042488323
232 Available_Reservd_Space 0x0033 100 100 005 Pre-fail Always - 100
233 Media_Wearout_Indicator 0x0032 100 100 --- Old_age Always - 3484
234 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 11750
241 Total_LBAs_Written 0x0030 100 100 000 Old_age Offline - 4566
242 Total_LBAs_Read 0x0030 100 100 000 Old_age Offline - 7746
244 Unknown_Attribute 0x0032 000 100 --- Old_age Always - 0
Read SMART Log Directory failed: scsi error badly formed scsi parameters
SMART Error Log Version: 1
No Errors Logged
Read SMART Self-test Log failed: scsi error badly formed scsi parameters
Selective Self-tests/Logging not supported
Pelas informações descritas, há a possibilidade de recuperar pelo menos os arquivos da unidade?
